1. CONDUCTOR
Copper, semi-rigid class 2
2. INSULATION
Polyvinyl Chloride [PVC]
Alternative: Cross-Linked polyethylene [XLPE]
3. SHEATH
Polyvinyl Chloride [PVC]
Rated Voltage: 0.6/1 KV
1. CONDUCTOR
Aluminum, semi-rigid class 2
2. INSULATION
Polyvinyl Chloride [PVC]
Alternative: Cross-Linked polyethylene [XLPE]
3. SHEATH
Polyvinyl Chloride [PVC]
Rated Voltage: 0.6/1 KV

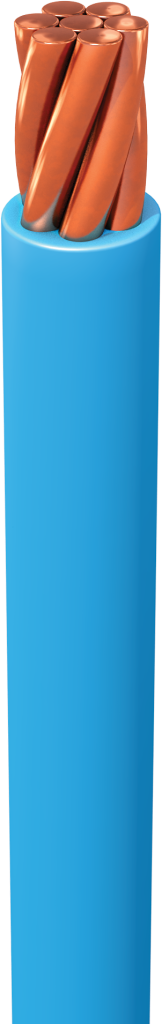

1. CONDUCTOR
Copper, semi-rigid class 2
2. INSULATION
Polyvinyl Chloride [PVC]
3. SHEATH
Polyvinyl Chloride [PVC]
Rated Voltage: 0.6/1 KV

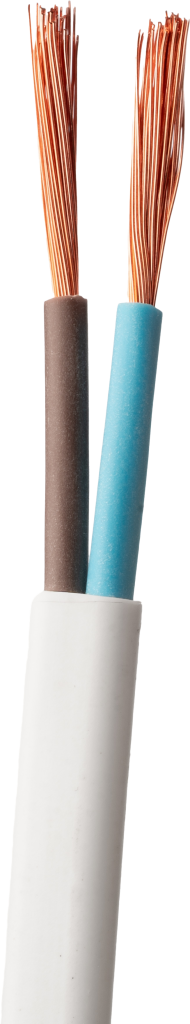

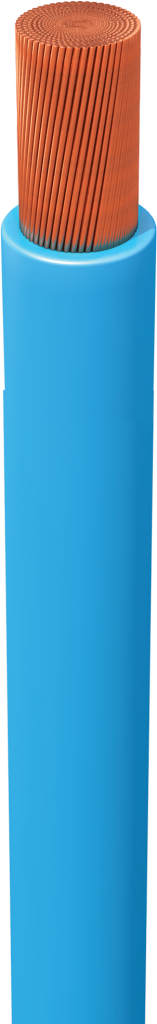

1- Conductor
Flexible plain annealed copper Class 5 as per BS EN 60228
2- Sizes
– Circular cables – 0.75 mm² to 4 mm² – 2, 3, 4 and 5 cores
– Flat cables – 0.75 mm² to 1.5 mm² – 2 cores Only
3- Insulation
Polyvinyl Chloride (PVC) Type TI2 to EN 50363-3
4- Sheath
Polyvinyl Chloride (PVC) Type TM2 to EN 50363-4-1
* Outer sheath varies as per standard and according to application

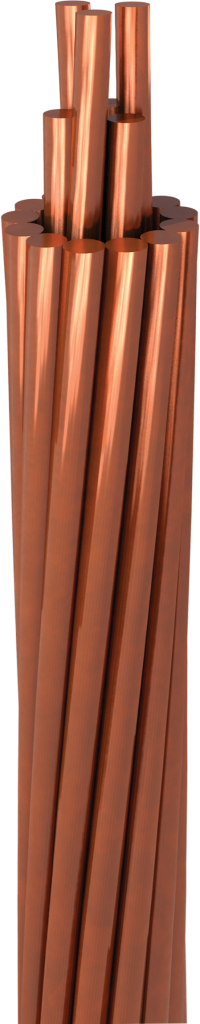

Conductor: Bare Copper Soft annealed copper wires stranded in successive layers, in opposite direction, to form the copper stranded conductor, it can be circular or circular compacted.

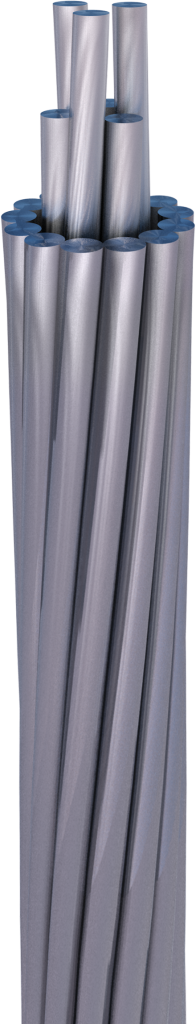

AAC is the most favoured type for use in the construction of relatively short span distribution schemes and are in common use on lines for voltage up to 60 KV.

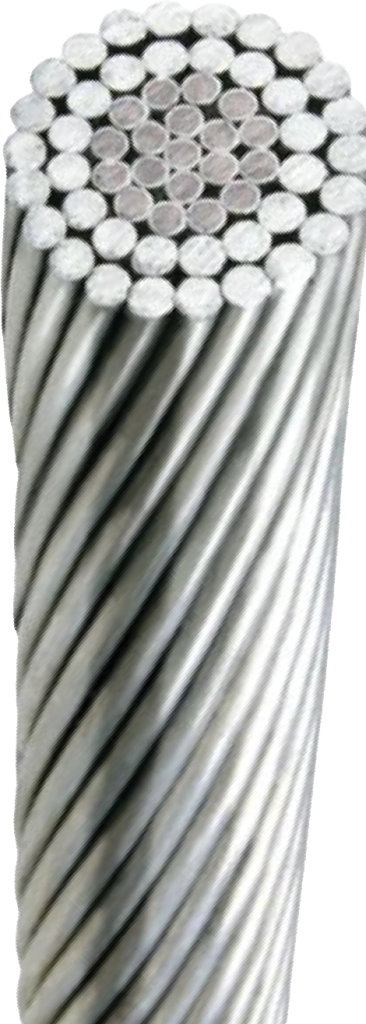

The mixed construction of ACSR (Aluminum Conductor Steel Reinforced) offers significant flexibility from a design perspective. By varying the proportion of aluminum (H14) and steel, an ideal conductor can be produced for any specific application. Generally, ACSR consists of a galvanized steel core, which can be made up of 1, 7, or 19 wires, surrounded by concentric layers of aluminum wire. For applications requiring high current-carrying capacity with comparatively lower strength, special constructions with higher aluminum content are available.
